The handheld MFA 500 belongs to the new generation of instruments for frequency analysis from 3 to 500 kHz. With its flexible exterior and intelligent interior it has a unique application range. Simplicity, combined with the ability to analyze multiple frequencies for PLC communication, makes it a powerful tool as a PLC Network sniffer.
An invaluable handheld instrument for field measurement and analysis of PLC communication. The MFA500 is an incredibly powerful tool for analyzing the frequency band from 3 to 500 kHz. Powerful analysis with recorded values in the PC software MFA Viewer
On/off button also functions as a frequency selector. The selected frequency is displayed with five LED indicators that can have three varied colors.
MFA Viewer displays the frequency band from 3 to 500 kHz in real time. Data logging is done by connecting the MFA500 to your PC and launching the software. MFA Viewer includes a powerful analysis section where you can study the data afterward. With MFA Viewer, you can set the PLC system you are using and the software will adjust the resolution accordingly.
To determine if a PLC disturbance affects your PLC signals, MFA Viewer features a “shadow area” where you easily and clearly will find if a disturbance could impact your data reading. MFA Viewer displays the level in decibel microvolts (dBµV). Several standards, such as EMC, are included to support real time measurements and post-analysis. These standards are represented by a red line in MFA Viewer.
The handheld MFA 500 belongs to the new generation of instruments for frequency analysis. With its flexible exterior and intelligent interior it has a unique application range. Simplicity, combined with the ability to analyze multiple frequencies for PLC communication, makes it a powerful tool.
Supports S-FSK and OFDM
Safety class CAT IV
MFA 500 has battery backup for more than five hours of operation.
Charging via the mini-USB connector and when connected to PC, the MFA500 has a battery backup for approximately 5 hours.
The frequency is displayed using five LED indicators with three different colors, allowing for 15 possible frequencies.
Switch off – Hold on/off button until frequencies lights are turning red – then release the button.
To determine if a PLC disturbance affects your PLC signals, MFA Viewer features a “shadow area” where you easily and clearly will find if a disturbance could impact your data reading. MFA Viewer displays the level in decibel microvolts (dBµV). Several standards, such as EMC, are included to support real time measurements and post-analysis. These standards are represented by a red line in MFA Viewer.

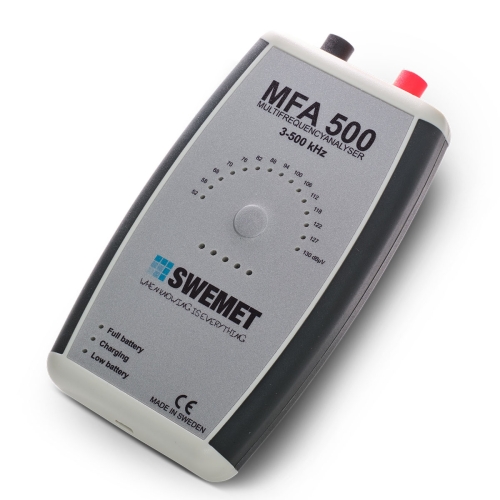

Handheld MFA500
